store-pod
The business layer that runs once per pod: the Caddy edge, the storefront and seven services.
A pod is one complete, isolated deployment of everything on this page, with its own Postgres and its own namespace (store-pod-<id>.cvhome.lcl, domain spg-<id>.gateway.com). It hosts many stores. Which stores live in which pod is decided in store-core (Tenancy and provisioning); the pod itself knows only the stores it was told to create. Shapes follow the legend.
Diagram C2b
Not drawn: every pod service accepts JWTs from both uaa (staff, via the gateway's token relay) and cua (shoppers), and authenticates to its peers with a client_credentials client against uaa; catalog asks billing in store-core for a store's entitlements before a product write. See Containers and Authentication.
spg: the pod edge (:80, :443)
Caddy, configured by store-pod/spg/Caddyfile. Two sites, http:// and https://, import the same routes snippet; the TLS site uses on_demand certificates stored in S3 (storage s3), and on_demand_tls { ask $ASK_TLS_URL } points at this pod's own merchant service, so a pod only mints certificates for its own tenants.
Route table, in Caddyfile order:
| Path | Target | Handler |
|---|---|---|
/content* | content:8121 | handle_path, prefix stripped |
/merchant* | merchant:8120 | handle_path |
/inventory* | inventory:8126 | handle_path |
/catalog* | catalog:8122 | handle_path |
/checkout* | checkout:8123 | handle_path |
/cua* | cua:8124 | handle, prefix kept, X-Forwarded-Prefix: /cua, preceded by domain_lookup |
/payment* | payment:8125 | handle_path |
| everything else | landing-ui:8110 | route with domain_lookup |
Every route opens an OpenTelemetry span named after its target and returns X-Trace-Id and X-Span-Id. Responses are compressed here (encode zstd gzip); Spring Boot's and Next's own compression are off. X-Forwarded-Port is set to the site's public port because Tomcat drops the port from X-Forwarded-Host.
domain_lookup (the caddy-domainlookup plugin) calls merchant's GET /api/v1/router/public/lookup-by-domain for the request's host, caches the answer for DOMAIN_LOOKUP_TTL (default 5m), and injects Store-Id, Theme, Color-Theme, Default-Language and Supported-Languages as request headers. This is the tenant-resolution seam: one landing-ui serves every store in the pod and learns which one from these headers alone. cua gets the same lookup so it learns the store from the host rather than from the login form. The /cua prefix is kept because OAuth2 redirect URIs must match the issuer. See Edge and custom domains.
The pod services
Each is a Spring Boot service in the -commons / -core / -external-api / -service module shape (except cua, one module), owning one Postgres schema named after the application and shipping its DDL in init-sql/schema.sql. Every endpoint takes a StoreMerchantId and a LanguageCode, and is guarded with @PreAuthorize("hasPermission(...)"). Services call each other through @HttpExchange interfaces from the -external-api modules; the provider's External*Api controller implements the same interface.
merchant (:8120)
Store configuration: languages, currency, domains, address and contact, and for now the theme and color scheme. APIs: MerchantStoreApi, ExternalMerchantStoreApi (how tenancy creates the store during provisioning and how cua resolves a shopper's store). RouterController at /api/v1/router is the edge's hook: GET public/ask-for-tls (a certificate only for the pod's own domain or a domain a store in this pod owns), GET public/lookup-by-domain (the headers spg injects), GET private/allocates, POST private/allocate, DELETE private/remove (domain allocation per store). The /merchant* handler still forwards the legacy /api/v1/content* and /api/v1/private/files paths to content.
content (:8121)
The content platform: pages, posts, banners, FAQ, policies, home sections, navigation menus, the media library and store appearance. One content and content_description table pair holds every ContentType; site_settings is one row per store with the logo, favicon, share image, social links and per-locale SEO. APIs under /api/v1/private/content/{pages|posts|banners|faq|policies|sections} (one WorkflowContentApi per type: publish, unpublish, review, archive, revisions, translations), SiteSettingsApi, media and menus; the public storefront API under /api/v1/storefront/**; ExternalMediaApi for catalog to resolve asset ids. ScheduledPublishJob promotes SCHEDULED rows once a minute. Files go to object storage (S3Config).
catalog (:8122)
Products, categories (materialized-path tree), brands, product types, product groups and relationships, images, a store-wide option vocabulary and per-product variants. Every product owns at least one product_variant; sku lives at the variant level, and responses carry no price or quantity. APIs under api/v1 and api/v2: ProductApi, ProductApiV2 (definition, storefront listing and PDP, /api/v2/products/search and /suggest), CategoryApi, ManufacturerApi, ProductTypeApi, ProductGroupApi, ProductRelationshipApi, ProductImageApi, ProductOptionApi, ProductVariantApi, ExternalProductApi (by sku, s2s). Product writes are checked against billing's entitlement snapshot (StoreEntitlements).
checkout (:8123)
Cart, orders and customers. One Order aggregate owns every status transition under @Version and appends to the append-only sales_order_event ledger. Placement is durable: order row, then RESERVE (inventory), INITIATE_PAYMENT (payment), COMMIT, each remote step outside a transaction; OrderRecoveryJob re-drives a pending action and OrderExpiryJob closes unpaid orders. Customers (customer_account, unique per store and cua subject) and the JDK ISO country list live here. APIs: CartApi (public), CheckoutApi (POST /cart/{code}/checkout, GET /order/{id}/status), OrderApi, CustomerAdminApi, StatisticApi, CustomerApi (shopper), ExternalOrderSignalApi (POST /private/orders/{ref}/signals/payment|reservation-expired, idempotent, called by payment and inventory), CountryApi.
payment (:8125)
Payment provider configuration per store (provider keys encrypted at rest with secret-crypto), payment execution and provider webhooks. Stripe is the integrated provider. APIs: PaymentConfigurationController, PrivatePaymentApi, PublicPaymentConfigurationController, PublicPaymentWebhookApi (POST /api/v1/public/webhook/{storeId}/{paymentType}, one webhook target per store), ExternalPaymentGatewayApi (what checkout calls to initiate). The Transaction aggregate registers PaymentPaid, PaymentFailed, PaymentCanceled and PaymentRejected events, and the transactional outbox pushes the resulting signal to checkout.
inventory (:8126)
Stock, prices and reservations, keyed by sku and split out of catalog; product_id is informational, with no foreign key to catalog. APIs: InventoryApi (PUT /private/inventory/{sku}, PUT /private/inventory/bulk, deletes by sku and by product, GET /private/inventory/by-products), ExternalInventoryApi (public GET /availability?skus= and POST /availability/query), ExternalProductReservationApi (reserve, commit, release; STORE-POD.INVENTORY.RESERVE). Consumers merge price and stock into catalog data themselves: console-ui and landing-ui client-side, checkout server-side.
cua (:8124)
Customer User Account: the shopper's OAuth2 authorization server, one per pod, a separate realm from uaa with its own user table and issuer. Built on the same store-commons/sso/sso-core as uaa. Self-registration (POST /api/v1/public/registration, JSON), social login per store (MerchantIdentityProviderController, PublicSocialLoginController), form-login processing.
cua is headless: it renders no HTML. HandoffLoginEntryPoint redirects an unauthenticated /oauth2/authorize to the storefront's {origin}/{lang}/login?auth=1; landing-ui renders the themed login form, which posts back to /cua/login; StorefrontLoginSuccessHandler resumes the authorize request. The storefront is a PKCE public client whose client_id is the store id (StorefrontClientRepository). It depends on merchant-external-api to resolve which store a shopper belongs to, and reads Store-Id from spg's domain_lookup rather than from the form.

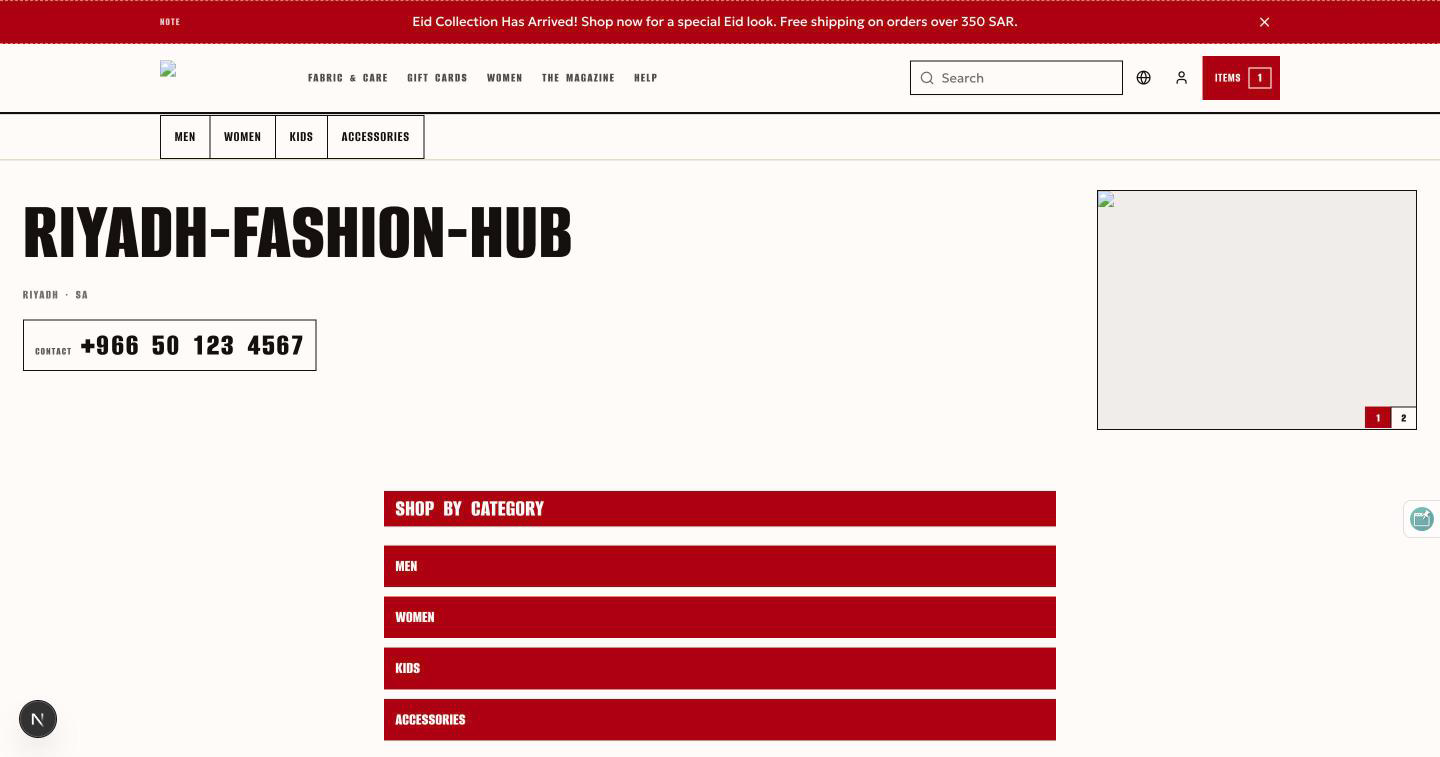

landing-ui: the storefront (:8110)
Next.js 16 / React 19, TypeScript, Tailwind v4, next-intl, in an npm-workspaces monorepo wrapped by Gradle (ui-conventions). storefront/ is the one Next.js app; libs/ holds types, services, hooks, ui, i18n and theme; themes/<id>/ are the theme packages. The build is build:libs (types, services, hooks) then next build with standalone output; the old one-app-per-theme generation in templates-deprecated/ is not built.
Themes. Twelve are registered in registry.ts: basic, beauty, cosmetics, fashion, furniture, glasses, grocery, hunger, jewellery, pink, sports, starter. The theme is resolved per request from spg's Theme header (resolveThemeId(); a dev-only ?theme= override, then the header, then STOREFRONT_THEME, then the legacy map, else starter). proxy.ts rewrites /{locale}/… to /t/<theme>/{locale}/…, never redirects, so the browser keeps its URL; /t/… requested from outside is a 404, and a request with no Store-Id goes to /store-not-found. One route tree per theme means a page loads only its own theme's CSS and JS. Merchant colors come from the Color-Theme preset through a contrast-guarded bridge (libs/theme/src/merchant-bridge.ts).
Reads. Server renders call merchant, content, catalog, checkout and inventory through the pod's spg (INTERNAL_SPG) with a per-request abort signal and a STOREFRONT_BACKEND_TIMEOUT_MS budget (3000 ms). Browser-side calls (cart, listing, auth) go to /catalog, /checkout, /cua, … on the store's own origin, which spg routes.
Static assets. With STATIC_ASSETS_SYNC_ENABLED=true, the container pushes .next/static and public to STATIC_ASSETS_S3_BUCKET under STATIC_ASSETS_S3_PREFIX at start (scripts/static-assets/sync-s3.mjs, skipped when that build is already in the bucket), and start.mjs substitutes the build's assetPrefix sentinel with STATIC_ASSETS_BASE_URL, the CDN in front of the bucket (CloudFront on AWS); STATIC_ASSETS_S3_ENDPOINT with path style targets MinIO for local QA. Unset, the container serves its own assets.
The page cache
Runs only under the production start.mjs (storefront/scripts/server/cache/); next dev has none of it. An anonymous document is kept in an in-process LRU store (memory, 64 MB, 1024 KB per entry by default) and served by route class, matched on the path after /{locale}:
| Class | Paths | TTL | Stale-while-revalidate | Edge Cache-Control |
|---|---|---|---|---|
home | / | 30 s | 300 s | public, s-maxage=30, stale-while-revalidate=300 |
category | /category/* | 30 s | 300 s | same pattern |
product | /product/* | 20 s | 120 s | |
search | /search | 15 s | 60 s | |
content | /content/*, /blog, /blog/* | 60 s | 600 s | |
help | /help, /policies/* | 300 s | 3600 s | |
seo | /sitemap.xml, /robots.txt | 600 s | 3600 s | |
shopper | /login, /register, /customer/*, /checkout/*, /callback | never | private, no-store | |
api-theme-manifest, next-internal | /api/theme-manifest; /_next/*, /api/*, /t/*, /store-not-found | never | left as set | |
default | anything else | never | private, no-store |
Key. v1|<class>|host=…|store=…|theme=…|color=…|locale=…|path=…|q=…, only the parts the class names: the host the shopper typed (x-forwarded-host), spg's Store-Id, Theme and Color-Theme, the locale, the path, and the query sorted with tracking parameters (utm_*, fbclid, gclid, msclkid, _ga, ref) dropped. Two stores on one task never share a key; a store whose theme changes gets a new one.
Behavior. A stale page is served at once and refreshed by a loopback request of the cache's own (x-storefront-revalidate); shoppers who miss while a page renders share that render. Never kept: a non-200, an HTML body that did not reach </html>, a render whose backend read aborted or timed out, a response setting any cookie but NEXT_LOCALE, a body over the entry limit. Bypassed whatever the class: a method other than GET or HEAD, an Authorization header, a client navigation or prefetch (Next's RSC headers), the theme or color override cookies, ?theme=, ?color=, ?preview=. The class's Cache-Control is set before the render and enforced as the head is written, with a Vary naming the store headers, so an edge between spg and the shopper would key a document the same way.
Observability. Every response carries x-storefront-cache: hit | miss | stale | stale-refresh | shared | bypass (read by the k6 suite, so the values are fixed); x-storefront-cache-class, -key and -reason under STOREFRONT_CACHE_DEBUG. GET /_storefront/cache/stats (loopback, or x-storefront-cache-token matching STOREFRONT_CACHE_STATS_TOKEN) is a JSON snapshot of the policy, the store and the counters. The storefront.cache meter exports storefront_page_cache_requests{state,class}, storefront_page_cache_entries{class}, storefront_page_cache_bytes{class} and storefront_page_cache_evictions{class,reason}.
Configuration. Environment only: STOREFRONT_CACHE_ENABLED, _STORE, _MAX_MB, _MAX_ENTRY_KB, _DEBUG, _STATS_TOKEN, _EVICTION_LOG_THRESHOLD; per class STOREFRONT_CACHE_<CLASS>_TTL_SECONDS, _SWR_SECONDS, _ENABLED; and STOREFRONT_CACHE_POLICY_JSON, a partial table deep-merged over the defaults. An invalid value stops the start; the effective policy is logged once.
The data cache. Behind a page miss, libs/services/src/cache-policy.ts names each anonymous read (store, categories, site, page, posts, post, banners, layout, faq, menu, policy, sitemap, redirect, product, productGroup, listing, facets, suggest) and gives it seconds, overridable through STOREFRONT_DATA_CACHE_<NAME>_SECONDS (productGroup becomes PRODUCT_GROUP; 0 turns one off). Price and stock come from inventory and are never cached, nor is a preview or anything carrying a shopper's credential.
Source of truth: cvhome .claude/skills/project-structure/references/store-pod.md, references/landing-ui.md, references/authentication.md, references/multi-tenancy.md, store-pod/spg/Caddyfile, store-commons/autoconfigure/src/main/resources/common-config.yml, store-pod/merchant/merchant-service/src/main/java/com/asrevo/cvhome/merchant/api/v1/RouterController.java, store-pod/payment/payment-service (PublicPaymentWebhookApi), store-pod/landing-ui/storefront/src/shell/theme/registry.ts, store-pod/landing-ui/storefront/scripts/server/cache/{config,policy,key,edge-headers,metrics}.mjs, store-pod/landing-ui/storefront/scripts/static-assets/sync-s3.mjs, store-pod/landing-ui/libs/services/src/cache-policy.ts, .agents/plans/storefront-cache.md.
