Architecture Overview

This document provides a high-level overview of the cvhome system architecture, focusing on its main components and how they interact. Understanding this structure is essential for effective development and contribution.

For the foundational principles behind this design, please refer to the Core Concepts.

High-Level Structure: Core & Store Pods

As outlined in the Core Concepts, cvhome is fundamentally divided into two logical cluster types:

1. The Core Cluster: A single, central cluster managing shared functionalities like authentication, tenant ( Organization) provisioning, Subscription management, and system administration.

2. Store Pod Clusters: One or more independent clusters, each capable of hosting multiple e-commerce storefronts and their associated backend microservices. Each Store Pod operates with its own database.

Inside the Core Cluster

The Core Cluster houses the central administrative and management services:

• UAA: Handles admins authentication and authorization.
• Control-Plane: The core orchestration service. Responsible for:
  • Managing users and permissions within an Organization.
  • Allocating Stores to specific Store Pod Clusters (store-pod-n).
  • Manages subscription plans and billing (using Stripe) for Organizations.
• store-ui: The Angular-based user interface for cluster services.
• CoreGateway: The API Gateway provide main entry point for accessing the Cluster services.

Inside a Store Pod Cluster

Each Store Pod is a microcosm of an e-commerce platform, containing the services needed:

• catalog: Manages product information, including categories, brands.
• order: Handles the e-commerce order lifecycle, including shopping carts, checkout processes, and order history.
• merchant: Manages store-specific configurations and settings, such as address, supported currencies/languages, custom informational pages for a store (e.g., "About Us", "Terms & Conditions").
• landing-ui: The customer-facing storefront application. Renders product listings, product details, handles user interactions like adding to cart and checkout.
• Spg: The reverse proxy and entry point for every store
  • It automatically generates and renews TLS certificates for custom domains configured for stores and forwards traffic internally, typically to the gateway.
  • identifies the target Store based on the request's domain (resolving it to a storeId) before forward the traffic to the gateway.

Communication Flow (Typical Storefront Request)

1. A user browser requests https://store1.example.com.
2. DNS resolves to the IP address of the Load Balancer fronting the Store Pod hosting this store.
3. The request hits Spg, which terminates TLS (having previously obtained a certificate based on configuration from the Merchant).
4. Spg inspects the Host: store1.customdomain.com header, determines the corresponding storeId forwards the request to the Store Pod services.
5. The Next.js application renders the page, making further API calls back through the down services scoping queries by storeId for Store Pod Database .

Code Structure: Monorepo

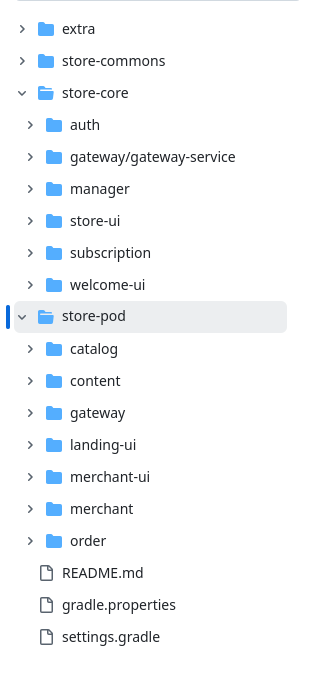

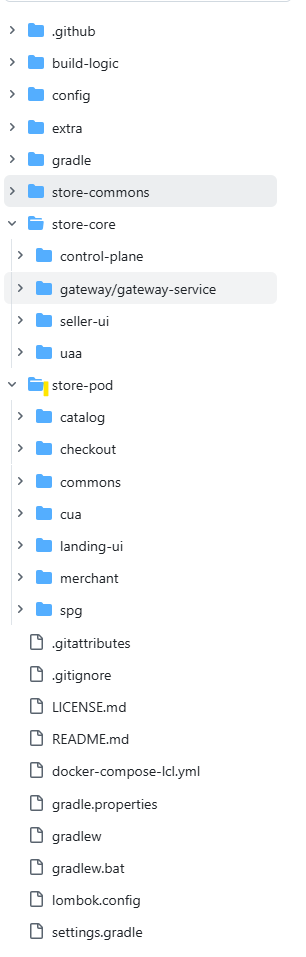

The source code for all microservices (Core and Store Pod) resides in a single monorepo.

• For details on setting up your local environment, see the Local Development Setup Guide.

Technology Stack Overview

The cvhome platform leverages a modern technology stack:

• Backend Microservices:
  • Language: Java 25+
  • Framework: Spring Boot , Spring Cloud
  • Build Tool: Gradle
  • Containerization: Docker
• Frontend UIs:
  • Storefront (landing-ui): Next.js
  • Admin/Management (store-ui): Angular
• Databases: Postgres SQL
• API Gateway: Spring Cloud Gateway
• Edge Routing / TLS: Caddy Server
• Authentication/Authorization: UAA, CUA
• Infrastructure Provisioning: Terraform
• Deployment Target: AWS

Project Structure

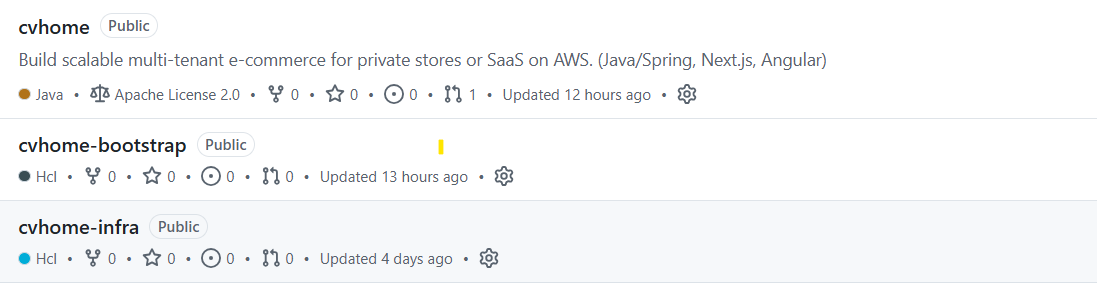

The cvhome platform utilizes multiple repositories for code and infrastructure:

1. Application Code (cvhome): Contains the application source code (microservices, UIs).
2. Infrastructure Pre-configuration (cvhome-bootstrap): Manages Production configuration (Terraform).
3. AWS Infrastructure Deployment (cvhome-infra): Deploys the main AWS infrastructure ( Terraform).Note: The infrastructure repositories (cvhome-bootstrap, cvhome-infra) are separate, not needed for local development, but are essential for the AWS deployment sections.

---
